Efficient air distribution systems play a pivotal role in modern building design, ensuring optimal comfort, superior indoor air quality, and enhanced energy efficiency. These systems are the backbone of Heating, Ventilation, and Air Conditioning (HVAC) networks, responsible for delivering conditioned air to various zones within a structure. A well-designed air distribution system not only supports the health and well-being of occupants but also minimizes energy wastage, aligning with sustainability goals.
In this blog, we delve into the intricate world of air distribution systems, examining their types, key design considerations, and implementation methodologies. By referencing established standards such as those from the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) and the Sheet Metal and Air Conditioning Contractors’ National Association (SMACNA), we aim to provide a comprehensive guide for engineers, consultants, and facility managers.
From duct configurations and air diffusers to system balancing and energy conservation techniques, this article serves as a valuable resource for understanding the critical aspects of air distribution. Whether you’re designing for a small office space or a large commercial complex, mastering the principles of air distribution is essential for achieving a harmonious balance between performance and efficiency.

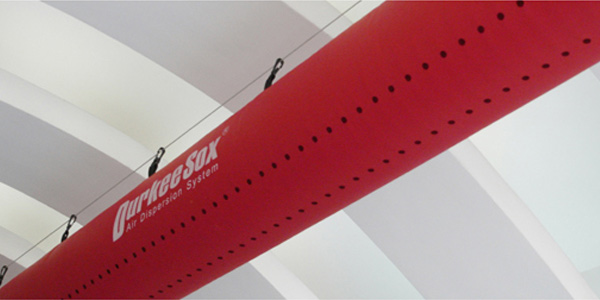

Types of Duct Systems
Duct systems in HVAC applications are classified based on pressure, velocity, and shape to meet different operational needs. Pressure classification is divided into low, medium, and high-pressure systems. Low-pressure ducts operate below 2 inches of water gauge (WG) and are ideal for residential and small commercial buildings. Medium-pressure ducts, ranging from 2 to 6 inches WG, are commonly used in larger commercial buildings, offering a balance between efficiency and performance. High-pressure ducts, which operate above 6 inches WG, are designed for industrial and specialized applications where space constraints and higher demands are present.
In terms of velocity, ducts are classified as low, medium, and high velocity. Low-velocity ducts, operating at less than 1,500 feet per minute (fpm), are designed to minimize noise and pressure losses, making them suitable for quieter environments. Medium-velocity ducts, with air speeds between 1,500 and 2,500 fpm, strike a balance between operational efficiency and space utilization, making them suitable for a wide range of commercial applications. High-velocity ducts, which exceed 2,500 fpm, require careful design considerations for sound attenuation and the use of robust materials to handle the increased airspeed.
The shape classification of ducts includes round, rectangular, and oval designs. Round ducts are known for their low friction losses and high structural efficiency, making them a preferred choice for most applications. Rectangular ducts are commonly used in spaces with constraints, though they require more material and may result in higher friction losses. Oval ducts combine the advantages of both round and rectangular ducts, offering an aesthetic solution while still providing effective airflow, making them ideal for applications where visual appeal is important.
Types of Ducts in HVAC Systems:
| Duct Type | Function | Residential Velocity (fpm) | Commercial Velocity (fpm) | Industrial Velocity (fpm) |
|---|
| Supply Ducts | Deliver conditioned air to occupied spaces. | 600-900 | 1,000-1,500 | 1,500-2,500 |
| Return Ducts | Carry air back to the HVAC unit for reconditioning. | 500-700 | 800-1,200 | 1,200-2,000 |
| Exhaust Ducts | Remove stale or contaminated air from spaces. | 400-600 | 700-1,000 | 1,000-1,500 |
Important Formulas Used in HVAC Duct Design
Design Considerations for Duct Systems
| Design Consideration | Description | Example |
| Aspect Ratio | Keep the width-to-height ratio below 4:1 to minimize friction losses and material usage. | A rectangular duct with a width of 24 inches and height of 6 inches has an aspect ratio of 4:1. |
| Duct Material | Choose materials based on application and pressure class. Common materials include galvanized steel, aluminum, and flexible materials. | Galvanized steel is used for a commercial HVAC system due to its durability and resistance to corrosion. |
| Insulation | Prevents heat gain/loss and reduces condensation. Follow ASHRAE Standard 90.1 for insulation requirements. | Insulating ducts with fiberglass to reduce heat loss in a heating system. |
| Sound Attenuation | Use acoustic liners or mufflers to reduce noise levels, particularly in high-velocity systems. | Installing acoustic liners in ducts to reduce noise in a high-velocity air conditioning system. |
| Duct Fittings Selection and Loss Coefficients | Choose fittings with minimal pressure losses. Refer to SMACNA’s HVAC Duct Construction Standards for detailed loss coefficients. | Using long-radius elbows to reduce pressure loss in a duct system. |
| External Static Pressure (ESP) | Calculate ESP to ensure the fan can overcome total system resistance. | Calculating the ESP in a large commercial building to ensure the HVAC fan can supply adequate airflow. |
Tips for Effective Duct Design
- Optimize Layout:
- Design the shortest and most direct duct paths to minimize pressure losses.
- Minimize Bends and Transitions:
- Avoid sharp turns and sudden changes in duct size to reduce turbulence and energy losses.
- Use Proper Sizing:
- Avoid undersized ducts that increase velocity and noise or oversized ducts that are inefficient and costly.
- Balance the System:
- Incorporate balancing dampers and adjust airflow to ensure even distribution across all zones.
- Seal the Ducts:
- Use high-quality sealants and tapes to prevent air leakage, adhering to SMACNA’s duct sealing standards.
- Consider Zoning:
- Implement zoning strategies for large systems to enhance control and efficiency.
- Account for Future Modifications:
- Design with flexibility in mind to accommodate future changes or expansions.
- Perform Load Calculations:
- Use accurate heat load calculations to ensure the system meets the building’s requirements.
Duct Design Methods
Equal Friction Method:
Assumes a constant pressure drop per unit length. Simplifies design but may require balancing dampers.
Velocity Reduction Method:
Gradually reduces velocity to minimize noise and pressure loss. Common in large systems.
Static Regain Method:
Balances pressure across branches by adjusting duct sizes. Ideal for high-performance systems.
Case Study: Duct Design for a Small Office Using the Equal Friction Method and NC Levels
Background: A small office located in a commercial building required a new HVAC duct system to ensure proper ventilation and comfort for its employees. The office had a total airflow requirement of 3000 CFM (Cubic Feet per Minute), and the design needed to adhere to noise criteria (NC) levels suitable for a professional environment.
Example Summary:
- Airflow (Q): 3000 CFM
- Velocity (V): 1250 fpm (to balance noise and pressure loss)
- Duct Size (D): 21 inches (round duct) / 24″ (W) x 16″ (H)
- Friction Loss: 0.1 inches WG per 100 feet
- Noise Criteria (NC): Target NC 30-35 for acceptable noise levels
Noise Rating and Noise Criterion
Noise Rating and Noise Criterion are similar methods for assessing sound levels, generally used for indoor noise assessments, often for noise related to air conditioning systems. Check which method is used in your region, but generally speaking the Noise Criterion method is used in the US and Noise Rating in Europe and much of the rest of the world. Both methods provide you with a single number result, which takes into account the response of the human ear and is much easier to handle than looking at the eight to ten dB values returned for the full octave band spectrum.
Software for Duct Design
- Carrier HAP
- Trane TRACE
- AutoCAD MEP
- Revit
- Elite Ductsize
Conclusion:
Designing an efficient air distribution system is essential for ensuring comfort, air quality, and energy savings. By considering factors like duct material, insulation, and design methods, and adhering to standards like ASHRAE and SMACNA, you can achieve optimal system performance. For more detailed guidance, refer to the ASHRAE HVAC Applications Handbook and SMACNA Duct Design Manuals to ensure your system is both effective and energy-efficient.
References:
- TECHNICAL DATA SHEET – EC FAN
- ASHRAE FUNDAMENTALS-CHAPTER-2- DUCT DESIGN
- ASHRAE HVAC SYSTEM DESIGN-CHAPTER-19- DUCT CONSTRUCTION
- HOW TO SIZE AND DESIGN DUCTS
- SMACNA Standards
