How to Design AHUs for Cleanroom Applications ?

Introduction

Cleanrooms are specialized environments where air quality, temperature, and humidity must be strictly controlled to meet industry standards. The Air Handling Unit (AHU) plays a critical role in ensuring contamination control, energy efficiency, and regulatory compliance. Whether in pharmaceuticals, electronics, biotechnology, or healthcare, the design of a Cleanroom AHU must be meticulously planned to maintain precise environmental conditions.

In this blog, we’ll explore:

  • Key design considerations for Cleanroom AHUs
  • Components and configurations
  • Filtration strategies and airflow management
  • Energy efficiency and sustainability practices
  • Maintenance best practices

1. Key Design Considerations for Cleanroom AHUs

The design of a Cleanroom AHU must align with ISO 14644 standards and industry-specific regulations (such as GMP, FDA, and EU Annex 1). Here are the critical design factors:

1.1 Air Quality & Filtration Efficiency

  • Cleanroom AHUs must maintain specific ISO classification levels (e.g., ISO 5, ISO 7, ISO 8).
  • High-efficiency particulate air (HEPA) or ultra-low penetration air (ULPA) filters are required to remove airborne contaminants.
  • Multi-stage filtration (Pre-filters → Medium Filters → HEPA/ULPA) ensures optimal air cleanliness.

1.2 Temperature and Humidity Control

  • Precision temperature control (+/- 1°C) is required for sensitive manufacturing processes.
  • Relative humidity (RH) control (ranging from 40%-60%) prevents electrostatic discharge and microbial growth.
  • Dehumidification and humidification systems integrated into AHUs regulate moisture levels.

1.3 Airflow Management

  • Laminar airflow (unidirectional flow) is critical for high-class cleanrooms (ISO 5 and below).
  • Turbulent airflow is acceptable for lower-class cleanrooms (ISO 7-8).
  • Air Changes per Hour (ACH) (Use TheHVACLab ACH Calculator) varies based on the classification:
    • ISO 5: 240-600 ACH
    • ISO 7: 60-90 ACH
    • ISO 8: 20-40 ACH

1.4 Pressure Differentials

  • Positive pressure (+10 to +15 Pa) prevents contaminants from entering cleanrooms.
  • Negative pressure (-10 to -30 Pa) is required in biohazard labs and pharmaceutical containment zones.
  • Airlocks and pressure monitoring sensors ensure proper differential pressure.

1.5 Regulatory Compliance

  • Compliance with ISO 14644, FDA, GMP, and EU Annex 1 guidelines is mandatory.
  • Cleanroom AHUs must meet ASHRAE 170 standards for healthcare environments.

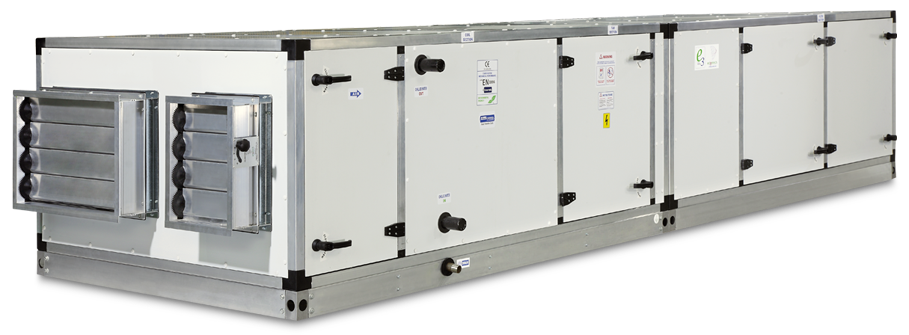

2. Cleanroom AHU Components & Configurations

A well-designed Cleanroom AHU consists of several essential components:

2.1 Filtration System

  • Pre-filters: Captures large dust particles and extends the life of HEPA filters.
  • Bag/Medium Filters: Removes smaller particulates before HEPA filtration.
  • HEPA/ULPA Filters: Final filtration to maintain cleanroom classification.
  • Carbon Filters (Optional): Controls odors and VOCs in specialized applications.

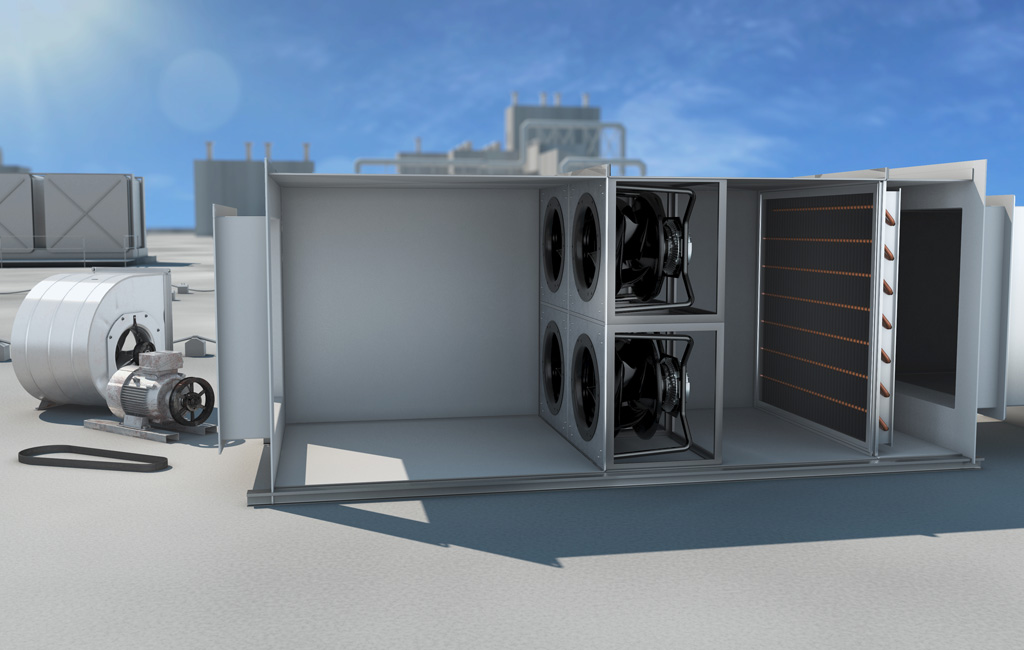

2.2 Fan & Motor System

  • EC (Electronically Commutated) Fans: Improve efficiency and reduce energy consumption.
  • VFD (Variable Frequency Drive): Adjusts airflow based on cleanroom occupancy and load.
  • Redundant Fan Systems: Ensures continuous operation in critical applications.

2.3 Temperature & Humidity Control

  • Cooling Coils: Chilled water or DX coils for temperature regulation.
  • Heating Coils: Steam, electric, or hot water coils for precise temperature control.
  • Humidifiers & Dehumidifiers: Ultrasonic or steam-based humidifiers for RH management.

2.4 Airflow Control & Distribution

  • Dampers & Louvers: Modulate air distribution and maintain airflow balance.
  • Plenum Chambers: Optimize airflow uniformity for laminar flow applications.
  • Ductwork Design: Should be smooth and sealed to prevent particle accumulation.

3. Filtration Strategies & Airflow Design

A multi-stage filtration strategy is essential to achieve contamination-free air in cleanrooms.

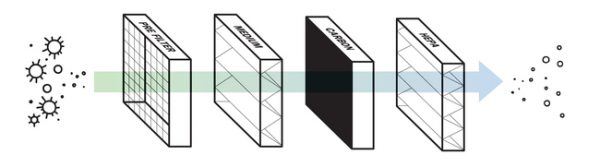

3.1 Multi-Stage Filtration Approach

Filter TypeEfficiencyParticle Size
Pre-FiltersG4 – MERV 8-1010-20 μm
Secondary FiltersF7/F9 – MERV 13-161-10 μm
HEPA/ULPA FiltersH13-U17 – MERV 17-200.3 μm
Carbon Filters (Optional)VOC AbsorptionChemical Fumes

3.2 Airflow Distribution Techniques

  • Laminar Flow Ceilings: Provide uniform downward airflow in critical areas.
  • Turbulent Flow for Lower Class Cleanrooms: Ensures efficient mixing of clean air.
  • Ceiling & Floor Return Air Grilles: Optimized placement reduces particle buildup.

4. Energy Efficiency & Sustainability in Cleanroom AHUs

Designing an energy-efficient Cleanroom AHU lowers operational costs while maintaining high-performance standards.

  • EC Fans & VFDs: Optimize fan speed and power consumption.
  • Heat Recovery Wheels: Reclaim energy from exhaust air.
  • Advanced Controls & IoT Sensors: Monitor real-time conditions and optimize settings.
  • Demand-Based Ventilation: Adjust airflow based on occupancy levels.
  • High-Efficiency HEPA Filters: Reduce pressure drop and energy use.
